Introduction of the plans for the left and right end modules of the layout can be found here and here.

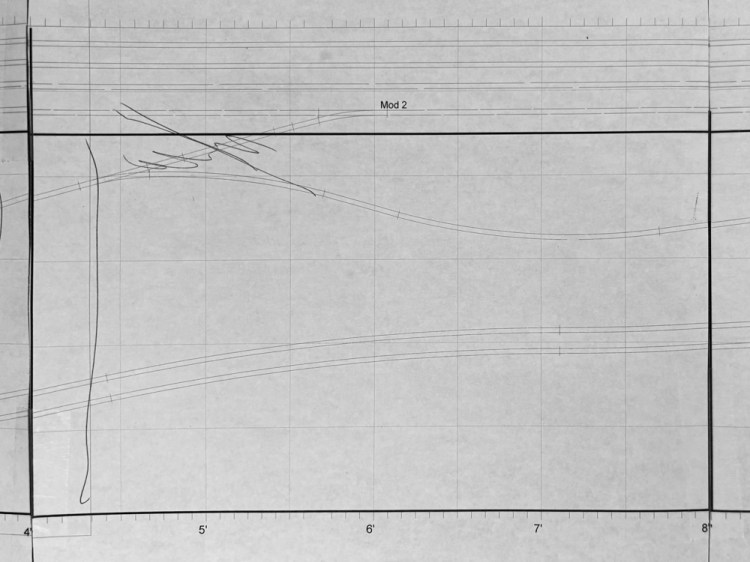

Modules two through six are the “meat” of the layout.

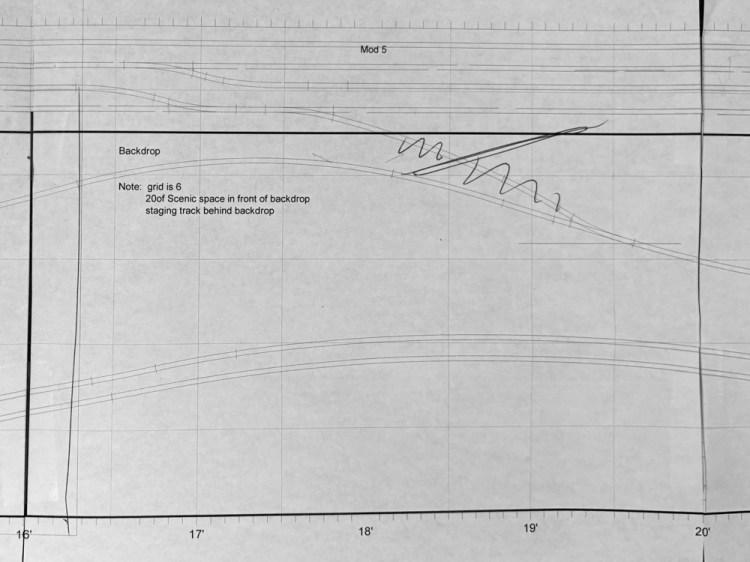

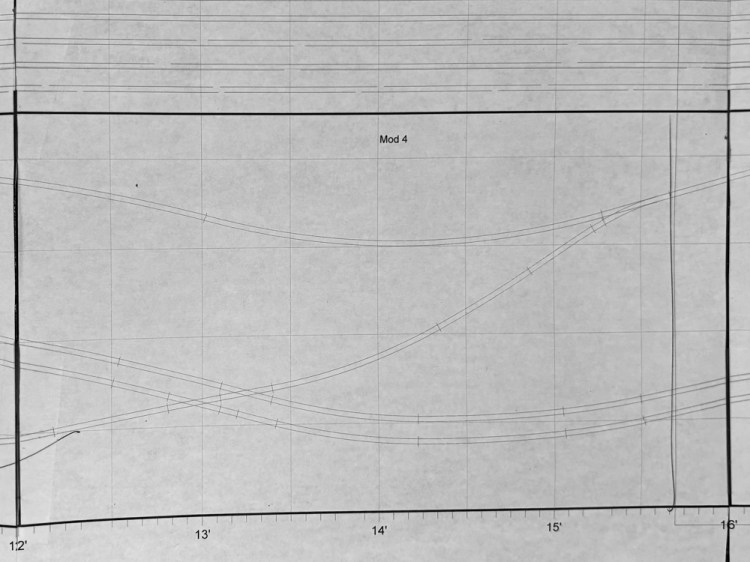

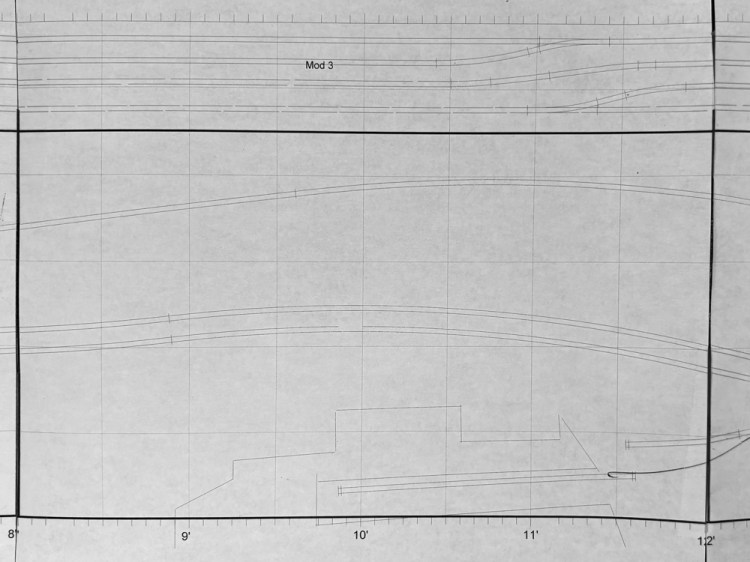

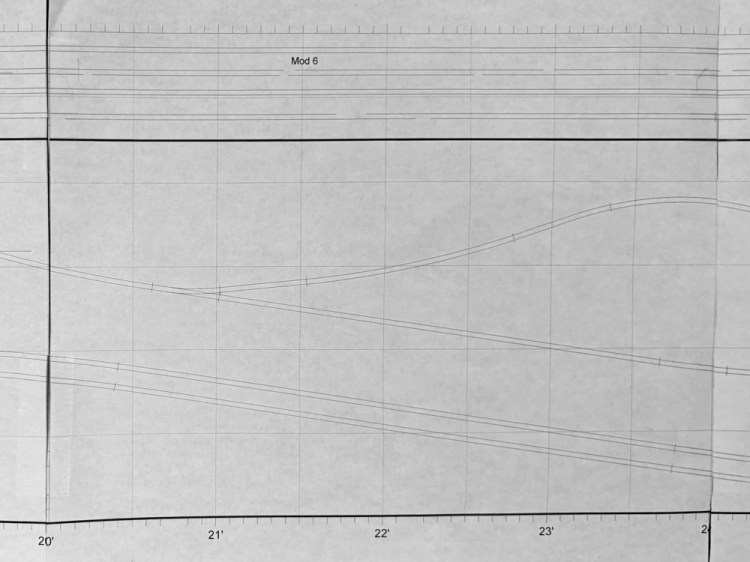

Module 3 introduces a port, creating a scene for the Club’s shipbuilding modellers. Module 4 has a tricky crossover for interlocking, and possibly signalling, operations. Module 5 shows that our thinking about some features is still in-progress and module 6 closes off the run-around/double-ended track that is present on Module 7.
The track work is also designed so that Modules 2, 3 and 4 can be omitted. The Club can travel to shows with Modules 1, 5, 6, 7 and still have a complete running setup.
There you have it: 7 modules, 28′ in total length and 34″ wide, creating 3 “mostly” independent tracks for running trains. Let the construction begin!
